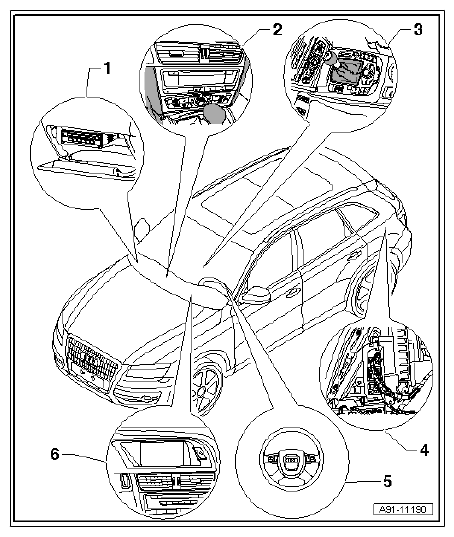

MMI System Overview
- CD Changer -R41- External Audio Source Connection -R199-
- Located In The Glove Compartment
- Information Electronics Control Module 1 -J794-
- At The Top Center Console
- Multimedia Control Head -E380-
- At The Bottom Center Console
- Radio -R-
- MMI
- Located Behind Luggage Compartment Left Side Trim
- Multifunction Steering Wheel
- Front Information Display Control Head -J685-
- Located In The Center Of Instrument Panel
