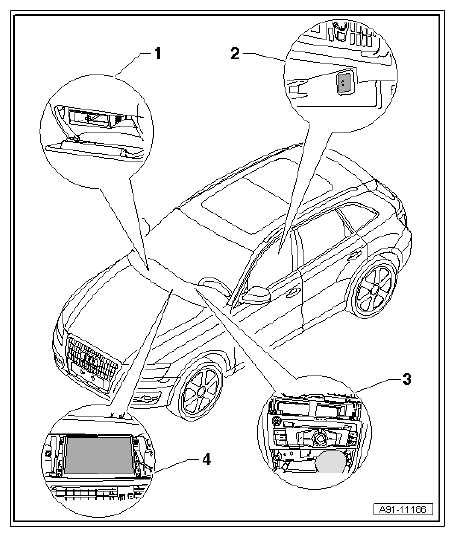

Radio System Component Overview

  1. External Audio Source Connection -R199-
    • Located In The Glove Compartment
    • AMI
  2. External Audio Source Connection -R199-
    • Located In The Center Console Storage Compartment
    • AUX IN
  3. Radio -R-
    • Located At The Top Center Console
  4. Front Information Display Control Head -J685-
G12779289Courtesy of AUDI OF AMERICA, LLC
