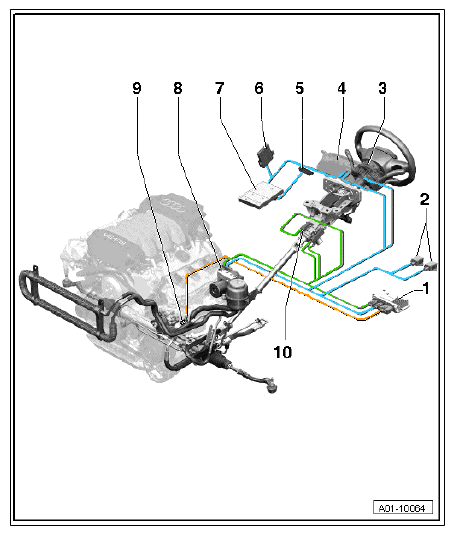

Dynamic Steering Components Overview
- Active Steering Control Module -J792-
- ESP Sensor Unit -G419- and ESP Sensor Unit 2 -G536-
ESP Sensor Unit -G419- Is Integrated With The Following:
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251-
- Steering Angle Sensor -G85-
- Instrument Cluster Control Module -J285-
- Charisma Switch Module -E592-
- Data Bus On Board Diagnostic Interface -J533-
- Vehicle Electrical System Control Module -J519-
- ABS Control Module -J104-
- Power Steering Pump -V119-
- With Power Steering Pump Control Valve -(V119)-
- The Pump And Control Valve Are A Single Component And Are Replaced Together
- Steering Column
