8SPD Selector Lever Assembly Overview

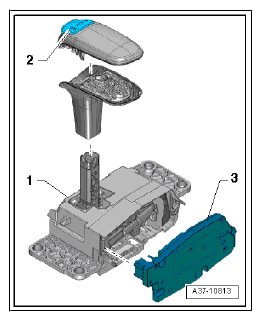

Selector Lever Assembly

1. Selector Lever Assembly with:
   • Selector Lever -E313-
   • Selector lever solenoid 1 -N496-
   • Selector lever solenoid 2 -N497-
   • Selector lever solenoid 3 -N498-
   • Selector lever solenoid 4 -N499-
   • Selector lever solenoid 5 -N500-
2. Selector Lever Release Button -E681- with Selector Lever Transmission Range (TR) Position Display Unit -Y26-
3. Selector Lever Sensor System Control Module -J587- with Selector Lever Position Sensor -G727-

Courtesy of AUDI OF AMERICA, LLC
