Component Location Coolant Fan Control Module -J293-/Coolant Fan Control (FC) Control Module 2 -J671-

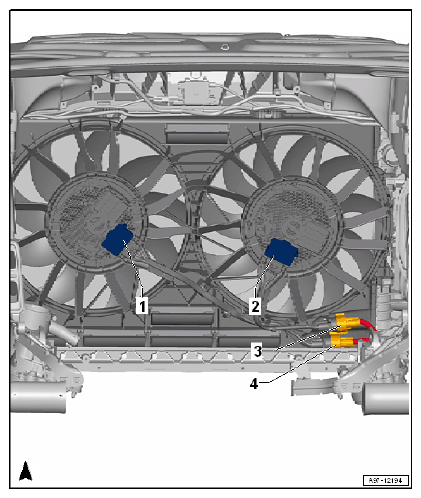

Component Location

On Cooler, Front.

1. Coolant Fan Control (FC) Control Module 2 -J671-
   • Coolant Fan 2 -V177-
2. Coolant Fan Control Module -J293-
   • Coolant Fan -V7-
3. 4-Pin Connector -T4F-, Black
4. 4-Pin Connector -T4E-, Black

Courtesy of AUDI OF AMERICA, LLC
