Component Location Distance Regulation Control Module 2 -J850-

Component Location

Below Front Left Headlamp -1-.

Connector

Courtesy of AUDI OF AMERICA, LLC

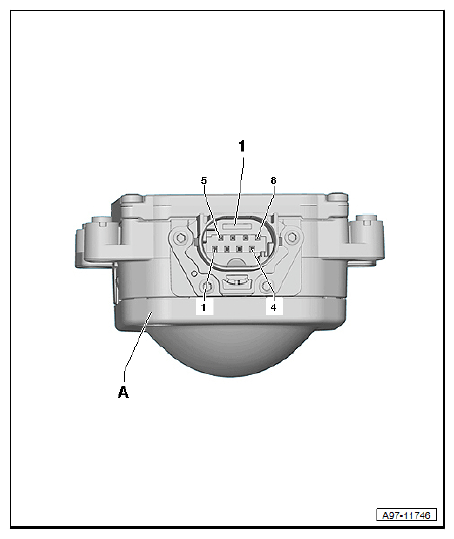

1. A  - Distance Regulation Control Module 2 -J850-
2. 1  - 8-Pin Connector -T8B-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES VEHICLE FRONT  .
