Component Location Driver's Door Control Module -J386-

Component Location

In Driver's Door -1-.

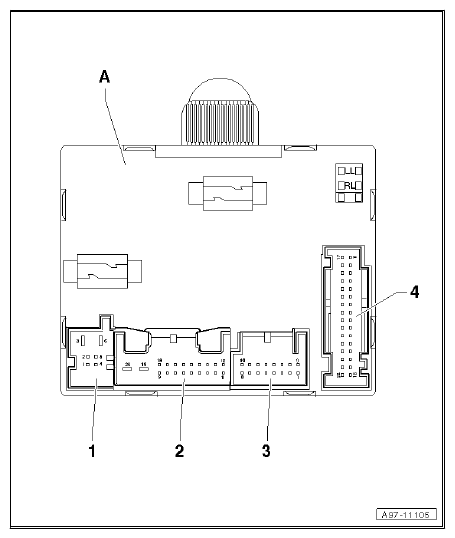

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. A  - Driver's Door Control Module -J386-
2. 1  - 6-Pin Connector -T6Ae-, Black
3. 2  - 20-Pin Connector -T20B-, Black
4. 3  - 16-Pin Connector -T16K-, Black
5. 4  - 32-Pin Connector -T32K-, Blue

Courtesy of AUDI OF AMERICA, LLC
