Component Location Left Hid Headlamp Control Module -J343-/Right High-Intensity Gas Discharge Lamp Control Module -J344-

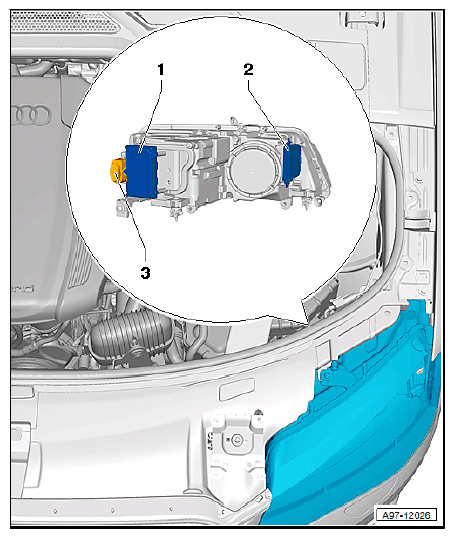

Component Location

On Headlamp.

1. Left Headlamp Power Output Stage -J667-/Right Headlamp Power Output Stage -J668-
2. Left High-intensity Gas Discharge Lamp Control Module -J343-/Right High-intensity Gas Discharge Lamp Control Module -J344-
3. 14-Pin Connector -T14f-/14-Pin Connector -T14e-
   • In headlamp: Left LED Parking Lamp/DRL Module -L176-, Left Cornering Lamp -L148-, Left Daytime Running Lamp and Parking Light Control Module -J860-, Left High Intensity Gas Discharge (HID) Lamp -L13-, Left Front Turn Signal Lamp -M5-, Left Front Side Marker Lamp -M33-, Sensor for left variable headlamp positioning motor -G695-, Left Headlamp Power Output Stage 2 -J892-, Left Headlamp Beam Adjustment Motor -V48-, Left Dynamic Cornering Light Motor -V318-, Right Daytime Running Lamp and Parking Light Control Module -J861-, Right High Intensity Gas Discharge (HID) Lamp -L14-, Right Cornering Lamp -L149-, Right LED Parking Lamp/DRL Module -L177-, Right Front Turn Signal Lamp -M7-, Right Front Side Marker Lamp -M34-, Sensor for right variable headlamp positioning motor -G696-, Right Headlamp Power Output Stage 2 -J893-, Right Headlamp Beam Adjustment Motor -V49-, Right Dynamic Cornering Light Motor -V319-

Courtesy of AUDI OF AMERICA, LLC
