Component Location Night Vision System Control Module -J853-

Component Location

In Footwell, Before Left Seat -2-.

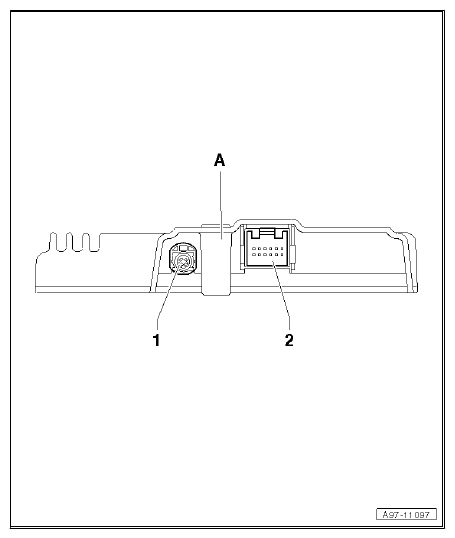

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. A  - Night vision system control module -J853-
2. 1  - 5-Pin Connector -T5l-, black, night vision system camera -R212-
3. 2  - 12-Pin Connector -T12l-, black

Courtesy of AUDI OF AMERICA, LLC
