Component Location Power Adjustable Steering Column Control Module -J866-

Component Location

On Steering Column -1-.

Connector

Courtesy of AUDI OF AMERICA, LLC

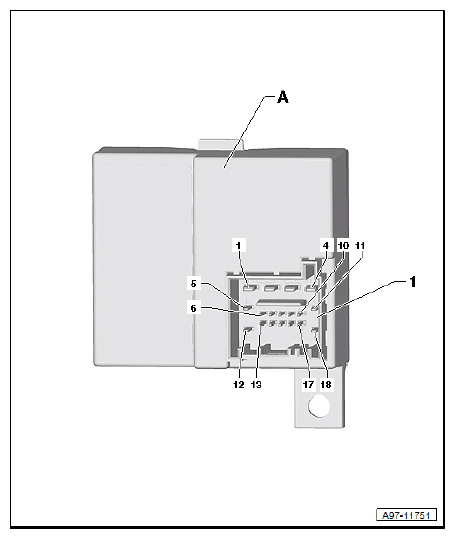

1. A  - Power Adjustable Steering Column Control Module -J866-
2. 1  - 18-Pin Connector -T18A-, Black

Courtesy of AUDI OF AMERICA, LLC
