Component Location Power Steering Control Module -J500-

Component Location

On Steering Box -1-.

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

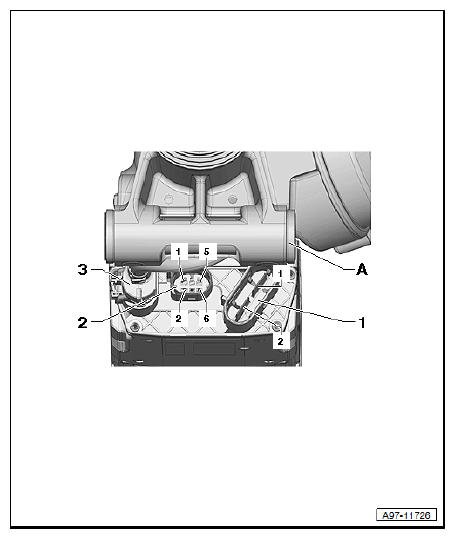

1. A  - Power Steering Control Module -J500-
   • With: Electro-mechanical Power Steering Motor -V187-, steering torque sensor -G269-
2. 1  - Double Connector -T2PX-, Black, Electro-mechanical Power Steering Motor -V187-
3. 2  - 6-Pin Connector -T6BV-, Black
4. 3  - Connector steering torque sensor -G269-

Courtesy of AUDI OF AMERICA, LLC
