Component Location Tire Pressure Monitoring Control Module -J502-

Component Location

Below Front Right Seat -2-.

Position -1- Image Processing Control Module -J851-.

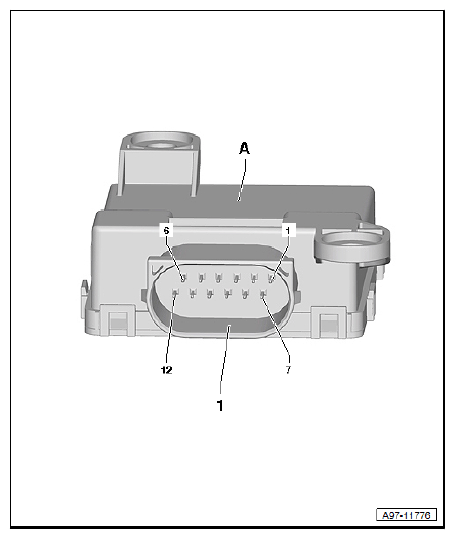

Connector

Courtesy of AUDI OF AMERICA, LLC

1. A  - Tire Pressure Monitoring Control Module -J502-
2. 1  - 12-Pin Connector -T12aw-, black

Courtesy of AUDI OF AMERICA, LLC
