Assembly Mounts Overview

Engine Mount

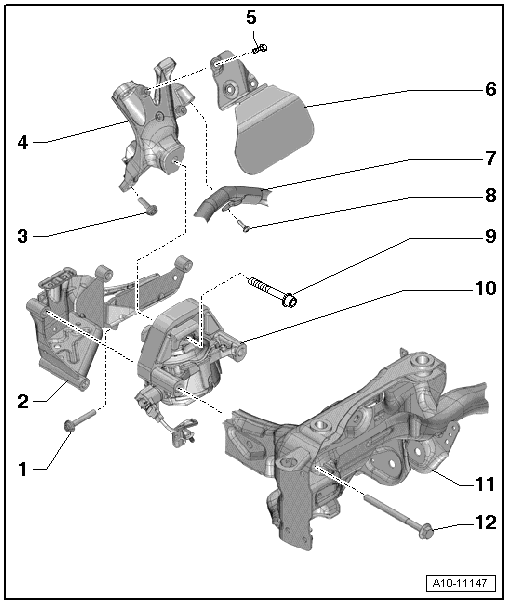

Fig 1: Assembly Mounts Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 20 Nm
2. Engine Mount Bracket
3. Bolt
   • 40 Nm
4. Engine Support
5. Bolt
   • 10 Nm
6. Heat Shield
7. Left Coolant Pipe in the Center
8. Bolt
   • Tightening specification -item 26- Bolt
9. Bolt
   • 90 Nm + 90° turn
   • Replace
10. Engine Mount
    • Left with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
    • Right with the Right Electrohydraulic Engine Mount Solenoid Valve -N145-
    • Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING
11. Subframe
12. Bolt
    • 55 Nm

Transmission Mount

Fig 2: Identifying Subframe Mount Overview (8-/12-Cylinder)

Courtesy of AUDI OF AMERICA, LLC

1. Right Transmission Mount
   • With Transmission Mount Valve 1 -N262-
   • Removing and installing, refer to RIGHT TRANSMISSION MOUNT, REMOVING AND INSTALLING
2. Bolt
   • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
3. Brace
4. Bolt
   • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
5. Right Transmission Support
6. Bolt
   • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
7. Bolt
   • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
8. Heat Shield
9. Bolt
   • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts .
10. Not Installed
11. Not Installed
12. Tunnel Crossmember
    • For removing and installing, refer to [For transmission(s) 0BK] Assembly Mounts
13. Rear Transmission Support
    • Removing and installing, refer to TRANSMISSION SUPPORT AND REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
14. Nut
    • Only remove if the transmission mount must be separated from the transmission support
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
15. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
16. Rear Transmission Mount
    • Removing and installing, refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
17. Lower Stop
    • For the rear transmission mount
18. Bolts
    • Only remove if the transmission mount must be separated from the transmission support
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
19. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
20. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
21. Left Transmission Support
22. Heat Shield
23. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
24. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
25. Brace
26. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
27. Left Transmission Mount
    • With Transmission Mount Valve 2 -N263-
    • Removing and installing, refer to LEFT TRANSMISSION MOUNT, REMOVING AND INSTALLING
28. Bolt
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
29. Nut
    • For the tightening specification, refer to [For transmission(s) 0BK] Assembly Mounts
