Throttle Position Sensor/Accelerator Pedal Position Sensor 2, Checking

Observe all safety precautions: SAFETY PRECAUTIONS

View clean working conditions: CLEAN WORKING CONDITIONS

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, Refer to the applicable wiring diagram.

Special Tools And Workshop Equipment Required

• multimeter.
• Wiring diagram

Test requirement

• The Motronic Engine Control Module (ECM) - J623- fuses OK.
  Fig 1: Fuses On E-Box In Engine Compartment, Left Side

  Courtesy of AUDI OF AMERICA, LLC
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Remove the drivers side storage compartment. Refer to the appropriate service information.

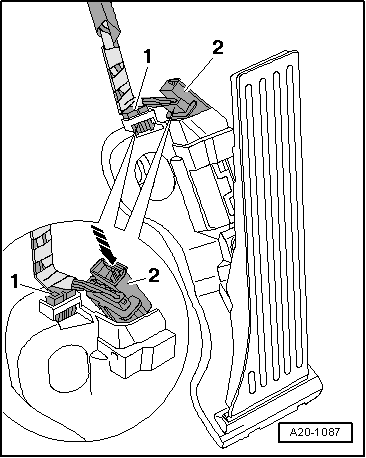

-- Disconnect the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- 6-pin electrical harness connector -2-.

Checking voltage supply and wiring

-- Switch the ignition on.

-- Using a multimeter, check the following wiring connections for voltage.

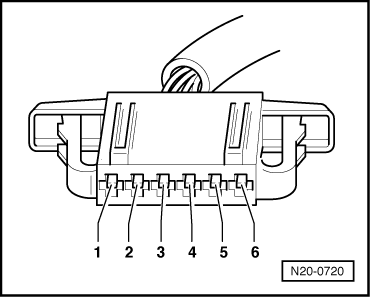

Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminals	Specified value
1 to Ground (GND)	about 5 V
1 to 5	about 5 V
2 to Ground (GND)	about 5 V
2 to 3	about 5 V

-- Switch the ignition off.

If the specification was not obtained:

Checking wiring

If the manufacturers test box is being used, perform the following step.

-- Install the test box.

If the manufacturers test box is not being used, perform the following step.

-- Remove the Motronic Engine Control Module (ECM) -J623-. Refer to the appropriate service information.

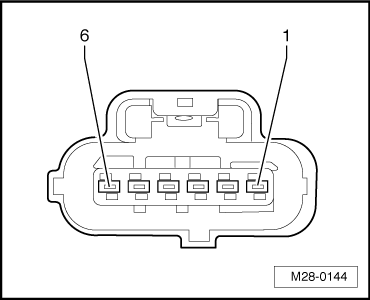

-- Using a multimeter, check the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminals to the Motronic Engine Control Module (ECM) -J623- electrical connector T91 for an open circuit.

Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminals	Motronic Engine Control Module (ECM) -J623- electrical connector T91 terminals
1	66
2	83
3	81
4	82
5	64
6	85

Specified value: 1.5 Ω max.

If the specification is not obtained:

-- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and if the voltage supply was OK:

-- Replace the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185-. Refer to the appropriate service information.

If no malfunction is detected in the wiring and if the voltage supply was not OK:

-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to the appropriate service information.

-- Install the drivers side storage compartment. Refer to the appropriate service information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
