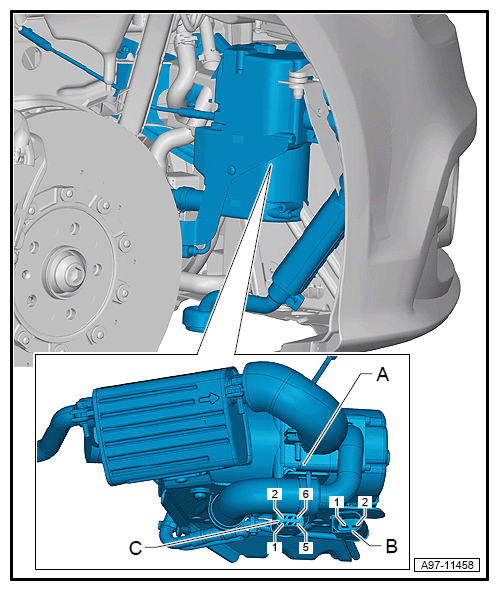

Auxiliary Heater Control Module -J364-, Connector Views
Double Connector -T2az-/6-Pin Connector -T6k-
| T6k (C) | Designation |
|---|---|
| 1 | CAN-Bus Instrument Cluster, High B708 Instrument Cluster CAN Bus - High Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 2 | CAN-Bus Instrument Cluster, Low B709 Instrument Cluster CAN Bus - Low Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 3 | Engine Coolant (EC) Switch-Off Valve (heater) N279 |
| 4 | Metering Pump V54 |
| 5 | Terminal 31, to 380 Ground Connection 15 (in main wiring harness) 43 Ground Connection (on right lower A-pillar) |
| 6 | Auxiliary Heater RF Receiver R64 |
| T2az (B) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel F SF |
| 2 | Terminal 31, to 379 Ground Connection 14 (in main wiring harness) 43 Ground Connection (on right lower A-pillar) |
