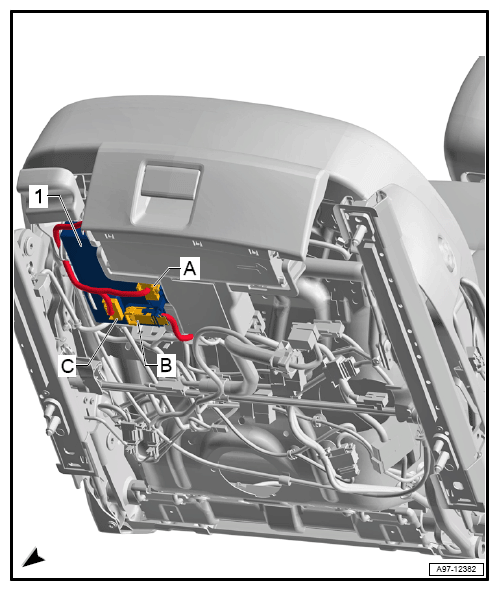

Memory Seat/Steering Column Adjustment Module -J136-, Location

  1. 1 - Memory Seat/Steering Column Adjustment Control Module -J136-
  2. A - 12-Pin Connector -T12x-, black
  3. B - 32-Pin Connector -T32m-, grey
  4. C - 16-Pin Connector -T16q-, black
G12768181Courtesy of AUDI OF AMERICA, LLC
