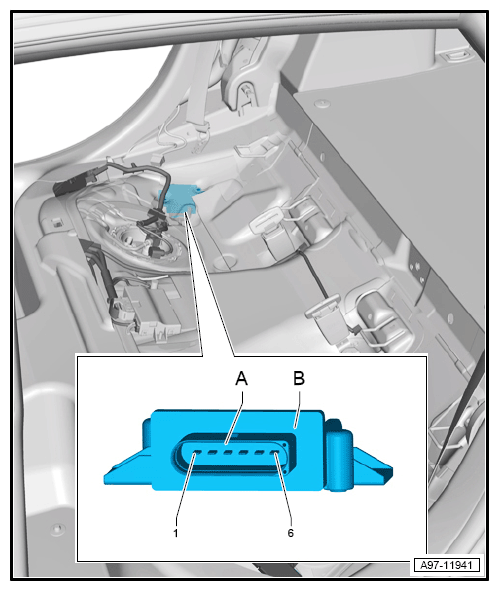

Fuel Pump (FP) Control Module -J538-, Connector Views

  1. 6-Pin Connector -T6ar-
  2. A - 6-Pin Connector -T6ar-, black
G12768261Courtesy of AUDI OF AMERICA, LLC
