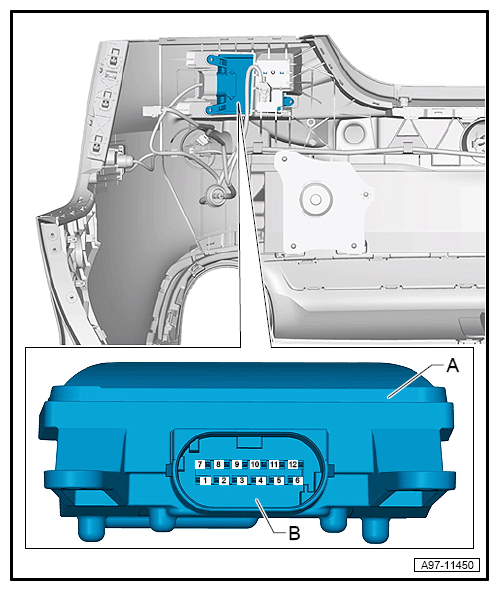

Lane Change Assistance Control Module 2 -J770-, Connector Views

  1. 12-Pin Connector -T12u-
    1. B - 12-Pin Connector -T12u-, black
G12768245Courtesy of AUDI OF AMERICA, LLC
