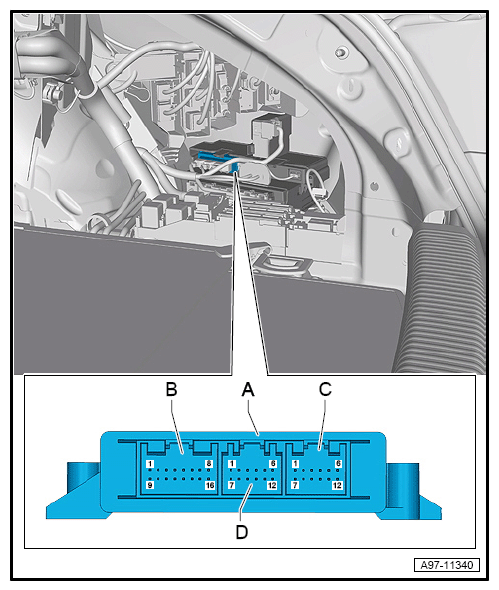

Parking Aid Control Module -J446- Connector Views

Parallel Parking Assistance Control Module -J791-

  1. 16-Pin Connector -T16i-/12-Pin Connector -T12w-/12-Pin

    Connector -T12q-

  2. B - 16-Pin Connector -T16i-, brown
  3. C - 12-Pin Connector -T12w-, black
  4. D - 12-Pin Connector -T12q-, brown
G12768218Courtesy of AUDI OF AMERICA, LLC
