Engine, Supporting In Installed Position

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Engine Support Bridge 10-222A

Procedure

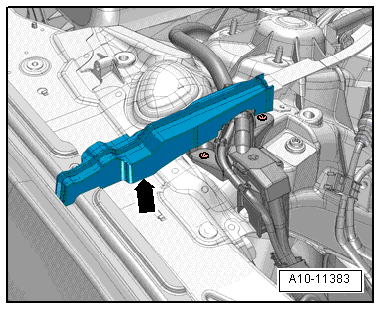

Fig 1: Identifying Foam Block

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the left and right foam block -arrow-.

-- Position the Engine Support Bridge 10-222A on the left and right suspension strut towers as illustrated.

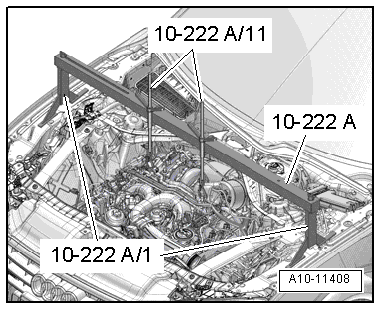

Fig 2: Identifying Engine Support Bridge Assembly

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the turbocharger assembly on BiTurbo Engines.

The spindles on the engine support bridge should only be attached to the engine lifting eyes and never engaged in the turbocharger assembly lifting eyes.

-- Engage the Engine Support Bridge - Spindle 10-222A/11 in the left and right engine lifting eyes.

-- Lightly pretension engine with spindles.
