Overview - Subframe Mount
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

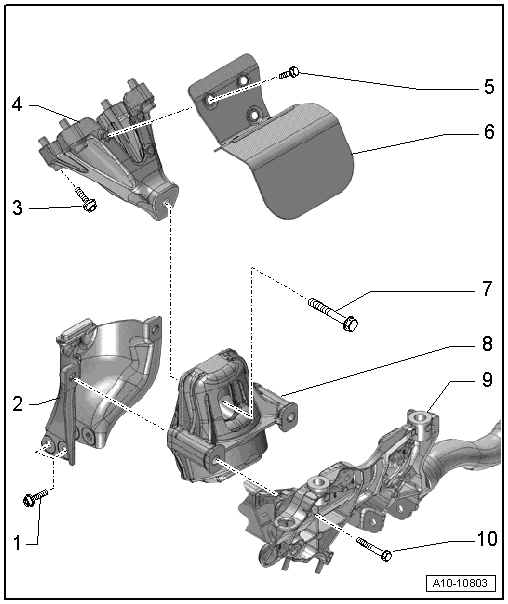

Engine Mount
- Bolt
- 20 Nm
- Retaining Plate
- For the engine mount
- If the engine mount is faulty, replace the retaining plate
- Check the retaining plate on the opposite side; replace if necessary
- Bolt
- 40 Nm
- Engine Support
- Bolt
- 10 Nm
- Heat Shield
- Bolt
- 90 Nm +90° turn
- Replace
- Engine Mount
- Left with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
- Right with the Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Replace in pairs
- Subframe
- There are different versions.
- Bolt
- 55 Nm

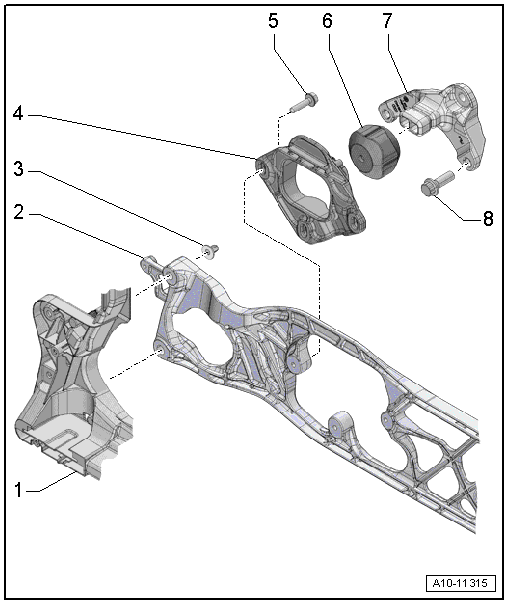

Torque Bracket
- Lock Carrier
- Transverse Beam
- Nut
- 40 Nm
- Stop
- For torque bracket
- Bolt
- 30 Nm
- Adjusting Buffer
- For torque bracket
- Torque Bracket
- Removing and installing, refer to TORQUE SUPPORT, REMOVING AND INSTALLING .
- Bolt
- 20 Nm +90° turn
- Replace
Automatic Transmission Mount 0BK
- Bolt
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
- Tunnel Crossmember
- Removing and installing, refer to OVERVIEW - SUBFRAME MOUNT .
- Stop
- For the transmission mount
- Transmission Mount
- Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING, VEHICLES WITH AUTOMATIC TRANSMISSION .
- Bolt
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
- Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
- Bolt
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
- Transmission Support
- Removing and installing, refer to TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING, VEHICLES WITH AUTOMATIC TRANSMISSION .
- Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
- Nut
- Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
