Torque Support, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the vibration damper, refer to VIBRATION DAMPER, REMOVING AND INSTALLING, VEHICLES WITH TORQUE SUPPORT .

-- Remove the noise insulation, refer to NOISE INSULATION, REMOVING AND INSTALLING .

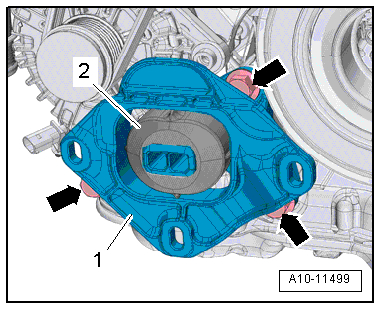

-- Remove the bolts -arrows- for the torque support stop -1-.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrow-, remove torque support -2- with stop -1-.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC
