Overview - Peripheral Camera System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

The peripheral camera system (KA6) consists of four cameras. They are located in the radiator grille, in both side exterior mirrors and in the rear lid. The peripheral camera system (KA4) consists of two cameras. They are located in the radiator grille and rear lid. The system helps the driver when parking, maneuvering or when driving off-road. The camera images are displayed on the Front Information Display Control Head -J685-.

Camera views that can be selected:

Bird's-eye view (KA6): the images from all four cameras (Front Peripheral Camera -R243- /Left Peripheral Camera -R244- /Right Peripheral Camera -R245- /Rear Peripheral Camera -R246-) show the view around the entire vehicle.
Front camera (KA4, KA6): the image from the camera inside the radiator grille (Front Peripheral Camera -R243-) shows the area in front of the vehicle (up to the left and right corners of the bumper).
Side cameras (KA6): the images from the cameras inside the left and right exterior rearview mirrors (Left Peripheral Camera -R244- /Right Peripheral Camera -R245-) show the side areas next to the vehicle.
Rear camera (KA4, KA6): the image from the camera in the rear lid (Rear Peripheral Camera -R246-) shows the area behind the vehicle.

Peripheral camera system components (KA6):

Front Peripheral Camera -R243-
Left Peripheral Camera -R244-
Right Peripheral Camera -R245-
Rear Peripheral Camera -R246-
Peripheral Camera Control Module -J928-
Information Electronics Control Module 1 -J794-

Peripheral camera system components (KA4):

Front Peripheral Camera -R243-
Rear Peripheral Camera -R246-
Peripheral Camera Control Module -J928-
Information Electronics Control Module 1 -J794-

Other control modules may be installed as optional equipment.

Installing an additional license is not permitted on vehicles with the peripheral camera system because it will impair the system.

Fault finding is performed via "Guided Fault Finding" on the Vehicle Diagnostic Tester.

Courtesy of AUDI OF AMERICA, LLC

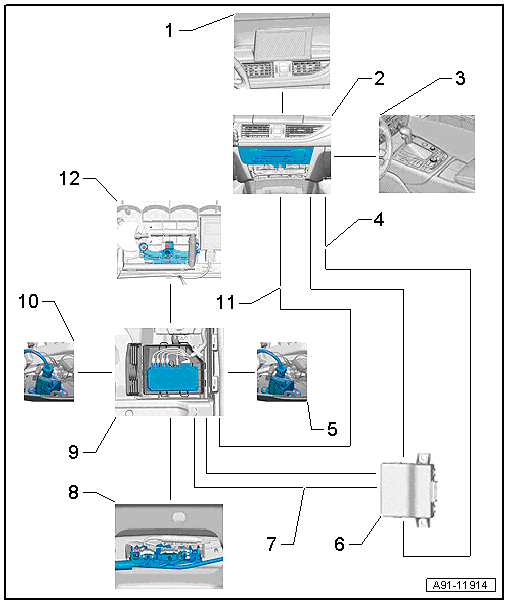

Front Information Display Control Head -J685- in Center of the Instrument Panel
Information Electronics Control Module 1 -J794- Inside the Instrument Panel
Multimedia System Control Head -E380- in the Center Console
MOST Bus
Right Peripheral Camera -R245- in the Right Exterior Mirror
- Depends on equipment
Data Bus On Board Diagnostic Interface -J533- Under the Rear Bench Seat
CAN Bus, Instrument Cluster
Rear Peripheral Camera -R246- in the Rear Lid Handle Button
Peripheral Camera Control Module -J928- Under the Right Front Seat
Left Peripheral Camera -R244- in the Left Exterior Mirror
- Depends on equipment
CVBS Cable From Peripheral Camera Control Module -J928-
Front Peripheral Camera -R243- in the Center of the Front Bumper Cover
