Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Move the carpet to the side. Refer to CARPET, REMOVING AND INSTALLING .

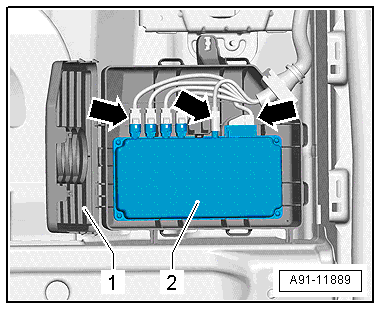

-- Open the E-box cover -1-.
-- Release and disconnect the connectors -arrows- from the Peripheral Camera Control Module -J928- -2-.
The Peripheral Camera Control Module -J928- -2- is only clipped into the E-box.
-- Push the retainer to the side and remove the Peripheral Camera Control Module -J928- -2- from the E-box.
