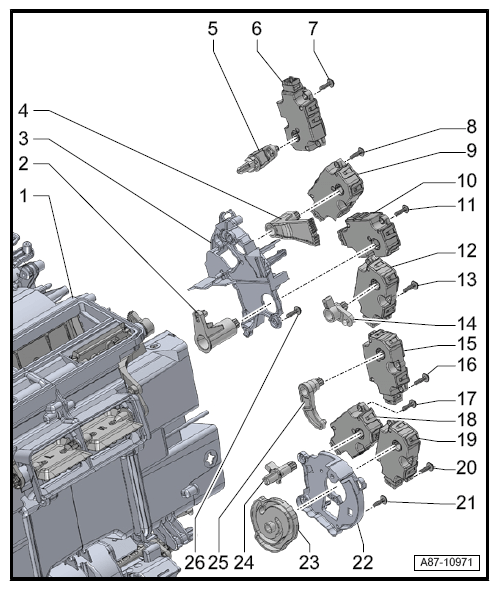

Plenum, Right

  1. 6 - Right temperature door motor -V159-
  2. 9 - Indirect ventilation door motor -V213-
  3. 10 - Right center vent motor -V111-
  4. 12 - Right side vent motor -V300-
  5. 15 - Right footwell door motor -V109-
  6. 18 - Right rear temperature door motor -V314-
  7. 19 - Right rear air door motor -V240-
G12768358Courtesy of AUDI OF AMERICA, LLC
