Airbag Control Module Connector End View (J234, T100)

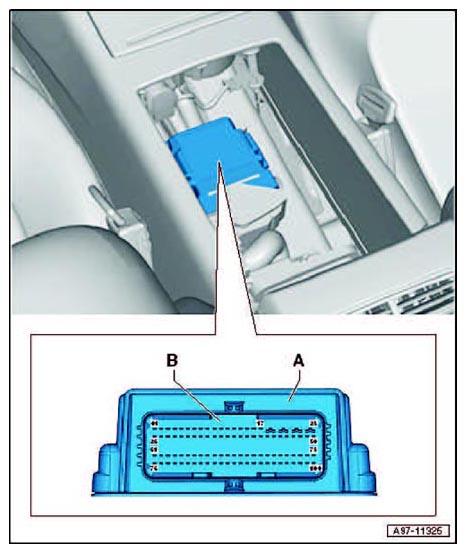

Fig 1: Airbag Control Module Connector End View (J234, T100)
Courtesy of AUDI OF AMERICA, LLC
A
Airbag Control Module -J234-
B
100-Pin Connector -T100-, yellow
