Door Closing Assist Control Module Connector End View (J657, T5ag)

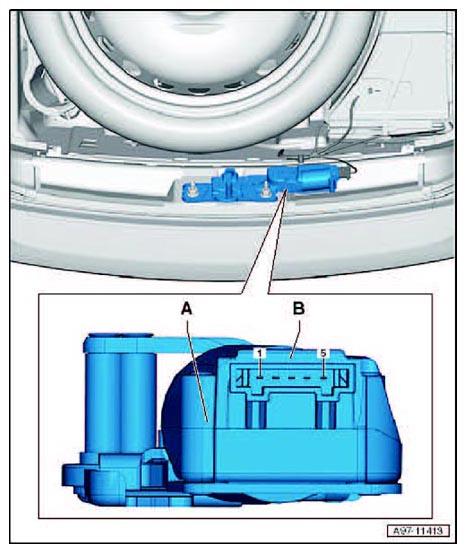

Fig 1: Door Closing Assist Control Module Connector End View (J657, T5ag)

Courtesy of AUDI OF AMERICA, LLC

A	Door Closing Assist Control Module -J657-
	with rear lid closing assist motor -V382-, Rear Lid Opening Assist Unlock Stop Switch -F332-, Rear Lid Closing Assist Lock Stop Switch -F333-
B	5-Pin Connector -T5ag-, black
