Rear Spoiler Control Module Connector End View (J223, T18b)

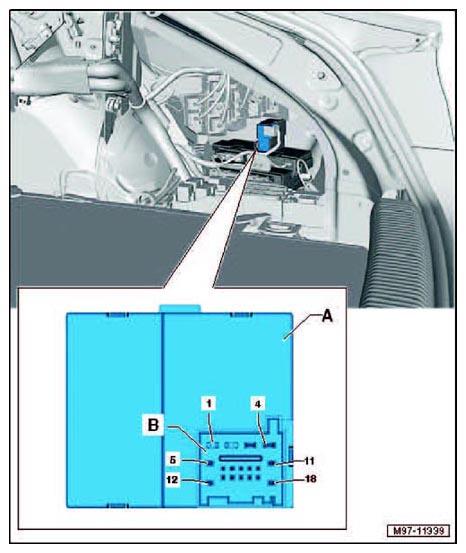

Fig 1: Rear Spoiler Control Module Connector End View (J223, T18b)
Courtesy of AUDI OF AMERICA, LLC
A
Rear Spoiler Control Module -J223-
B
18-Pin Connector -T18b-, brown
