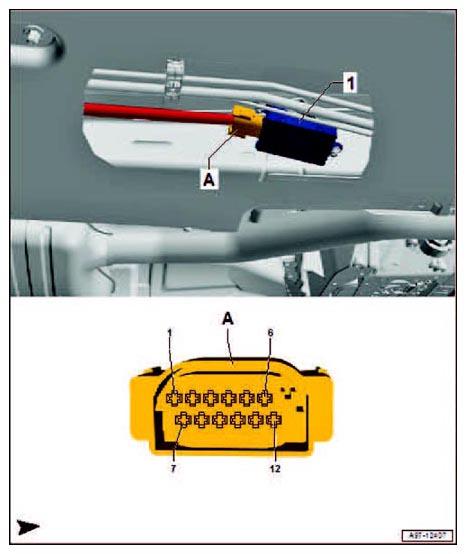

Tire Pressure Monitoring Control Module Connector End View (J502, T12ao)
| 1 | Tire Pressure Monitoring Control Module -J502- |
| A | 12-Pin Connector -T12ao-, black |
| -T12ao- (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | (B605) Connection 1 (in passenger compartment wiring harness) to tire pressure monitoring antennas |
| 4 | Right Front Tire Pressure Monitoring Antenna -R60- |
| 5 | Right Rear Tire Pressure Monitoring Antenna -R62- |
| 6 | Terminal 30, from Fuse Panel F -SF- |
| 7 | CAN-Bus Instrument Cluster, High Wiring junction for instrument cluster CAN-Bus, High -TV36- |
| 8 | CAN-Bus Instrument Cluster, Low Wiring junction for instrument cluster CAN Bus, Low -TV40- |
| 9 | Left Front Tire Pressure Monitoring Antenna -R59- |
| 10 | Left Rear Tire Pressure Monitoring Antenna -R61- |
| 11 | (B606) Connection 2 (in passenger compartment wiring harness) to tire-pressure monitoring antennas |
| 12 | Terminal 31, to (380) Ground Connection 15 (in main wiring harness) (43) Ground Connection (on right lower A-pillar) |
