Wiper Motor Control Module Connector End View (J400, T4t)

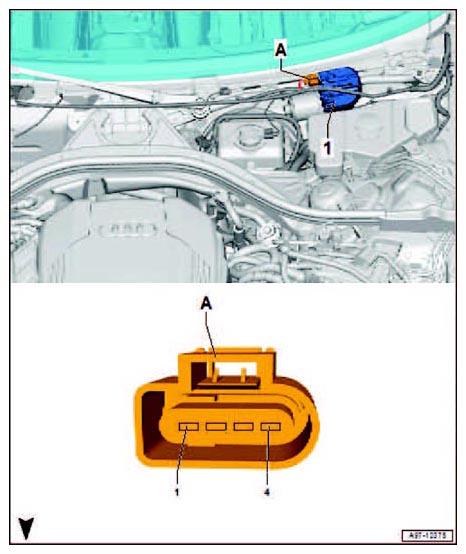

Fig 1: Wiper Motor Control Module Connector End View (J400, T4t)

Courtesy of AUDI OF AMERICA, LLC

1	Wiper Motor Control Module -J400-
	with windshield wiper motor -V-
A	4-Pin Connector -T4t-, black
	Left and right-hand drive differently used

-T4t- (A)	Designation
1 (left-hand drive)	Terminal 30, from Fuse Panel B -SB-
1 (right-hand drive)	LIN=Bus (B698) LIN-Bus Connection 3 (in main wiring harness) Vehicle Electrical System Control Module -J519-
2 (left-hand drive)	Terminal 31, to (369) Ground Connection 4 (in main wiring harness) (44) Ground Connection (on left lower A-pillar)
2 (right-hand drive)
3 (left-hand drive)
3 (right-hand drive)	Terminal 31, to (369) Ground Connection 4 (in main wiring harness) (44) Ground Connection (on left lower A-pillar)
4 (left-hand drive)	LIN-Bus (B698) LIN-Bus Connection 3 (in main wiring harness) Vehicle Electrical System Control Module -J519-
4 (right-hand drive)	Terminal 30, from Fuse Panel B -SB-
