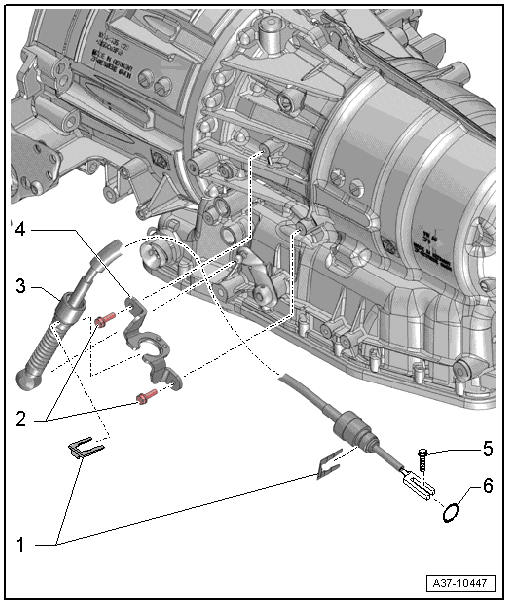

Overview - Selector Lever Cable
- Clip
- For selector lever cable
- Replacing
- Bolt
- 8 Nm
- Quantity: 2
- Selector Lever Cable
- Do not bend
- Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
- The selector lever cable must be replaced if the rubber grommet is damaged.
- Lubricate the ball socket lightly with Polycarbamide Grease G 052 142 A2 before installing.
- Make sure the rubber grommet on the transmission side is not twisted when installing.
- Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
- Bring into Installed Position. Refer to SELECTOR LEVER CABLE, BRINGING INTO BASIC SETTING .
- Cable Mounting Bracket
- Bolt
- For selector lever cable adjustment
- Attached to the selector mechanism function unit
- 13 Nm
- O-Ring
- Replacing
- Gearshift Lever
- Bolts - top arrows- : 9 Nm.
- Bolt - bottom arrow- : 20 Nm.
