Overview Selector Lever Handle, Front Locking Button

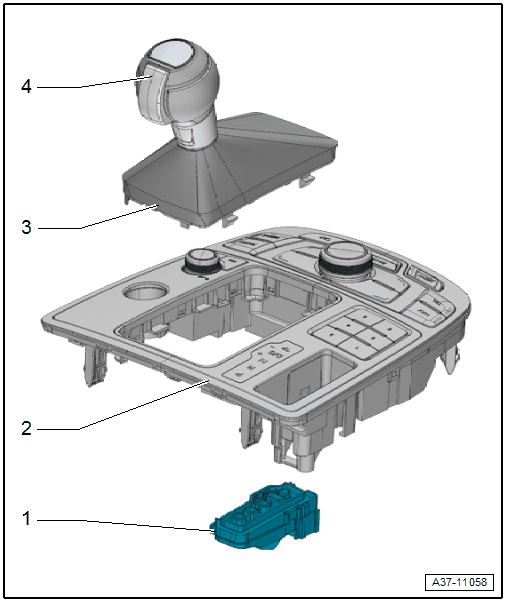

Fig 1: Overview Selector Lever Handle, Front Locking Button

Courtesy of AUDI OF AMERICA, LLC

1. Selector Lever Transmission Range Position Display Unit -Y26-
   • Removing and Installing. Refer to SELECTOR LEVER TRANSMISSION RANGE POSITION DISPLAY -Y26- .
2. Multimedia System Control Head -E380-
   • Removing and Installing. Refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING .
3. Selector Lever Boot
   • Removing and installing together with the selector lever handle, refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING, FRONT LOCKING BUTTON
4. Selector Lever Handle
   • Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING, FRONT LOCKING BUTTON .
