Cover Profile, Replacing: Notes
- 1 -

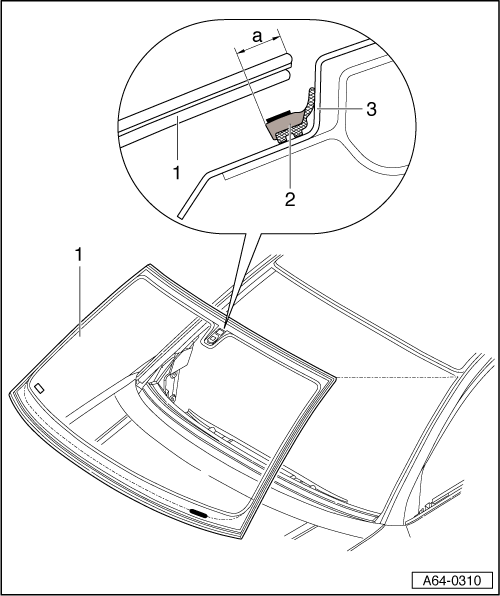

Windshield
- Removed.
- 2 -
Cover Profile
- Before installing new cover profile, remove residue completely using a commercially available window scraper.
- Clean adhesion area with cleaning solution D 009 401 04.
- Apply on to interior of window using, for example, a soft pencil at a distance -a- = 8 mm from upper window edge.
- Prime adhesion surface with D 009 200 02 up to marking applied earlier and let it air dry for at least 10 minutes.
- Press cover profile onto window centered with rear edge to end of priming (pencil marking).
- Press on cover profile firmly using an application roller.
- Reinstall window.
