Power Adjustable Steering Column Control Module Connector End View (J866, T18a)

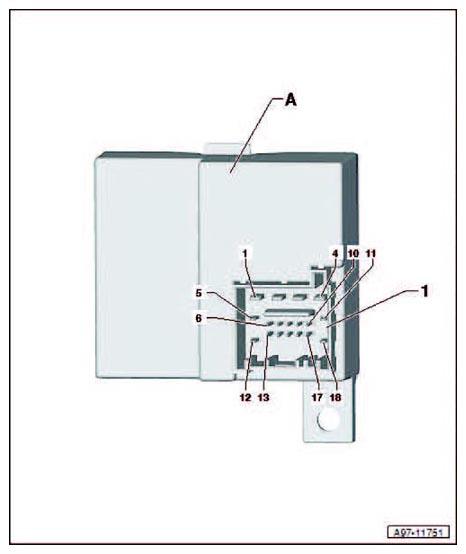

Fig 1: Power Adjustable Steering Column Control Module Connector End View (J866, T18a)
G10359974Courtesy of AUDI OF AMERICA, LLC
A Power Adjustable Steering Column Control Module -J866-
1 18-Pin Connector -T18a-, black
