Engine, Supporting In Installed Position: Procedure

WARNING: This page is about a different car, the 2014 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of accident due to shifting the engine weight.

The transmission and tunnel crossmember must be installed for the following support method.

-- Remove the engine cover, refer to REMOVING .

-- Remove the left and right upper longitudinal member -2-, refer to OVERVIEW - LOCK CARRIER .

Fig 1: Identifying Upper Right Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine Support Bridge 10 - 222 A with the Engine Support - Supplement Kit - Component 4 T40091/4, Component 5 T40091/5, Engine Support Brackets - Component 7 T40093/7 and Engine Support Brackets - Component 8 T40093/8 on the left and right suspension strut towers as shown.

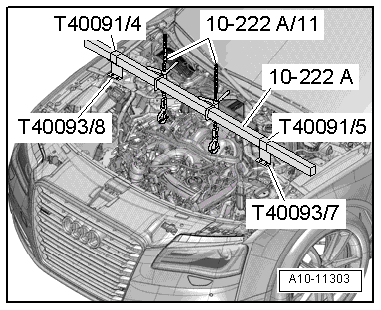

Fig 2: Identifying Engine Support Bridge 10 - 222 A

Courtesy of AUDI OF AMERICA, LLC

-- Attach the Engine Support Bridge - Spindles 10 - 222 A/11 to the engine lifting eyes and pre-tension the engine slightly.
