Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

Lifting Tackle 3033
Engine And Transmission Holder VAS 6095 with Bracket for 12 cyl. TDI engine 2011> VAS 6095/1-12
Shop Crane VAS 6100
Lift Arm Extension VAS 6101
Hose Clip Pliers VAS 6362

Procedure

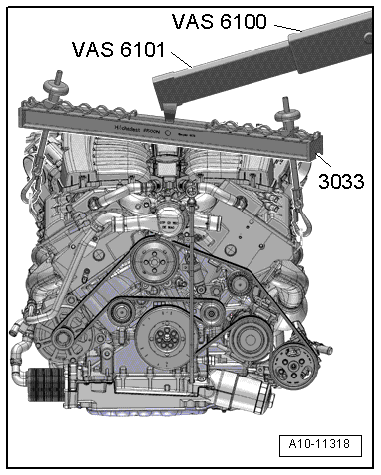

Fig 1: Identifying Engine, Securing On Engine And Transmission Holder

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission subassembly removed; engine and transmission separated, refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Articulated Joint Support VAS 6131/13-7.

-- Engage the Lifting Tackle 3033 on the engine lifting eyes and on the Shop Crane VAS 6100 with Lift Arm Extension VAS 6101 as shown in the illustration.

-- Tension engine slightly with shop crane, do not raise.

-- Remove the bolt -arrow- from the left engine mount.

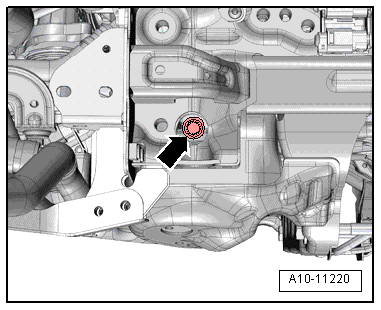

Fig 2: Identifying Left Engine Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine mount bolt -2-.

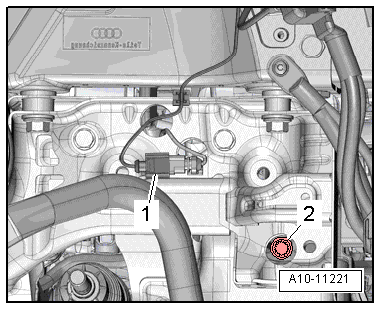

Fig 3: Identifying Electrical Connector And Right Engine Mount Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Remove the Articulated Joint Support VAS 6131/13-7 from the engine.

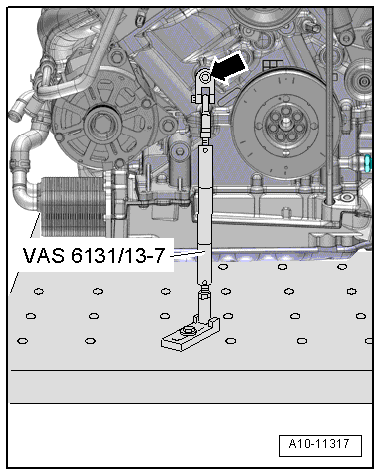

Fig 4: Identifying Articulated Joint Support VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

-- Remove the bolts -arrows- and remove the left engine support.

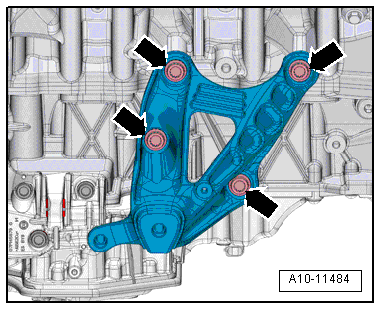

Fig 5: Identifying Bolts And Left Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the right engine support.

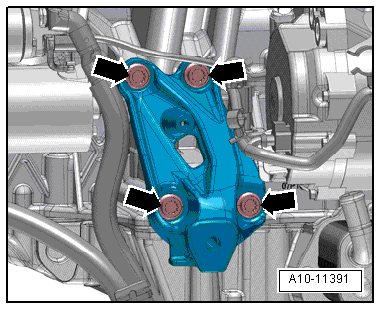

Fig 6: Identifying Bolts And Right Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Secure the starter on the engine.

-- Attach the engine using the Bracket for 12 cyl. TDI engine 2011> VAS 6095/1-12 to the Engine And Transmission Holder VAS 6095 to 40 Nm, as shown in the illustration.

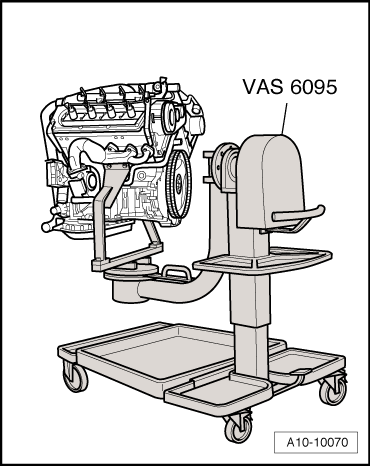

Fig 7: Identifying Engine, Holder VAS 6095 And Bracket For V6 FSI Engine VAS 6095/1-5

Courtesy of AUDI OF AMERICA, LLC
