Fuel Pump (FP) Control Module Connector End View (J538, T12s)

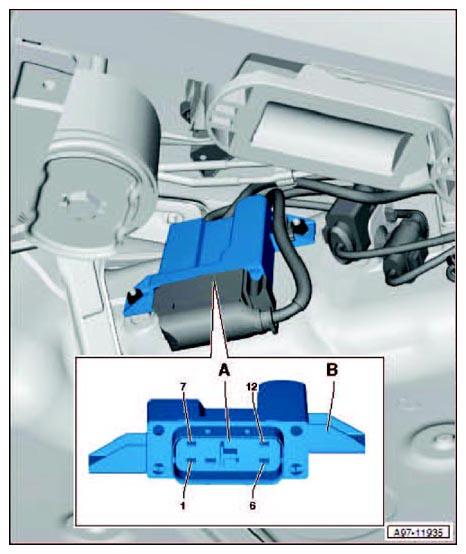

Fig 1: Fuel Pump (FP) Control Module Connector End View (J538, T12s)
Courtesy of AUDI OF AMERICA, LLC
A
12-Pin Connector -T12s-, black
B
Fuel Pump (FP) Control Module -J538-
