Lane Change Assistance Control Module Connector End View (J769, T12m)

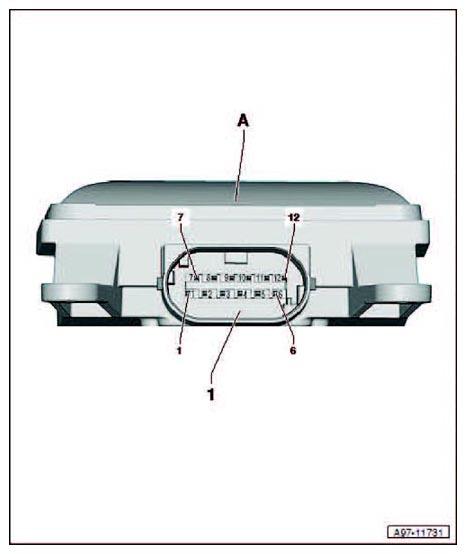

Fig 1: Lane Change Assistance Control Module Connector End View (J769, T12m)
G10360036Courtesy of AUDI OF AMERICA, LLC
A Lane Change Assistance Control Module -J769-
1 12-Pin Connector -T12m-, black
