Axle Alignment Control Position On Vehicles With Air Suspension, Checking

Axle Alignment Control Position, Checking

Before performing an axle alignment on a vehicle with air suspension, check the curb weight or control position and adapt it again if necessary.

-- Start the axle alignment using the Vehicle Diagnostic Tester in "Guided Functions".

Determining the Height Dimension -a-

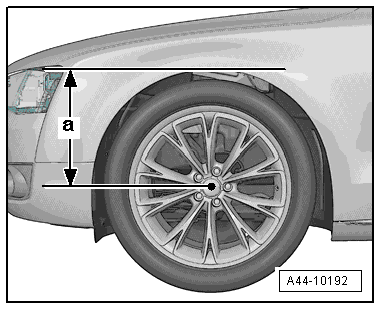

Fig 1: Lifting To Curb Weight Position

Courtesy of AUDI OF AMERICA, LLC

Height dimension -a- is the measurement in mm between center of wheel and lower edge of fender.

-- Determine dimension -a- between the center of the wheel and the lower edge of the fender/wheel housing as illustrated.

Height Dimensions Overview
