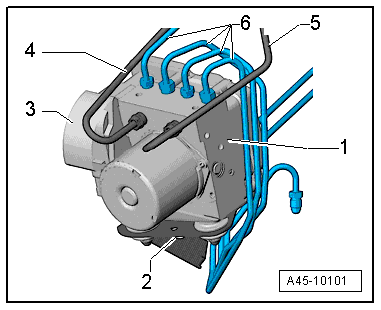

Overview - Control Module And Hydraulic Unit
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Installed location: in the front left engine compartment.
- Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- The hydraulic control unit consists of ABS Hydraulic Unit -N55- with integrated Brake Pressure Sensor 1 -G201- and the ABS Control Module -J104-.
- Do not disconnect the connector before successfully completing OBD.
- Switch the ignition off before disconnecting the connector.CAUTION:
ABS Hydraulic Unit -N55- and ABS Control Module -J104- must not be disconnected from each other.
- Bracket
- Cannot be removed.
- Connector
- For ABS Control Module -J104-
- Brake Line
- To the brake master cylinder
- Brake Line
- To the brake master cylinder
- Brake Lines
- Hydraulic unit to right front brake caliper
- Hydraulic unit to left front brake caliper
- Hydraulic unit to left rear brake caliper
- Hydraulic unit to right rear brake caliper
