Abs Control Module -J104-

Component Location

On Left Front Long Member -Arrow-.

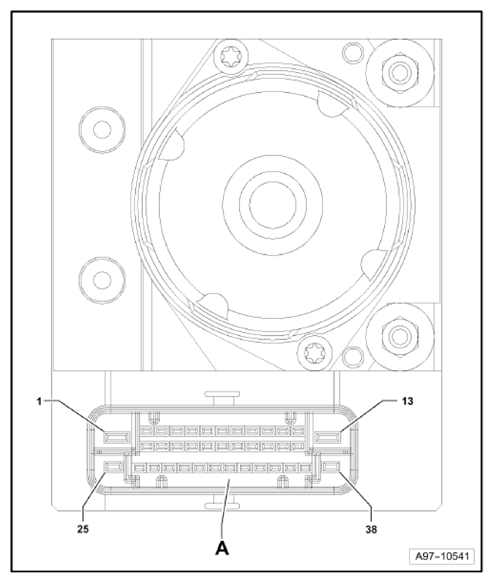

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. A  - ABS Control Module -J104-
2. A  - 38-Pin Connector -T38-, Black

Courtesy of AUDI OF AMERICA, LLC
