CLIMATRONIC Control Module -J255-

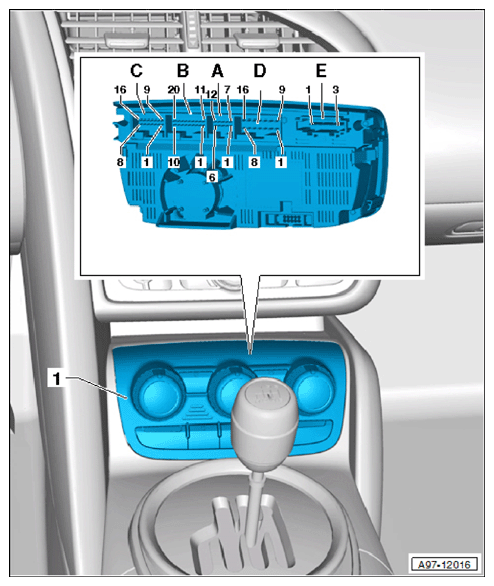

Component Location

In Lower Instrument Panel, Center. -1-.

1. Climatronic Control Module -J255-

1. 12-Pin Connector -T12-
2. 20-Pin Connector -T20f-
3. 16-Pin Connector -T16C-, Brown
4. 16-Pin Connector -T16B-, Black
5. 3-Pin Connector -T3B-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES  .
