Engine Control Module (ECM) -J623- (Right)/Engine Control Module (ECM) 2 -J624- (Left)

Component Location

In Engine Compartment, Front Left And Rights -Arrow-.

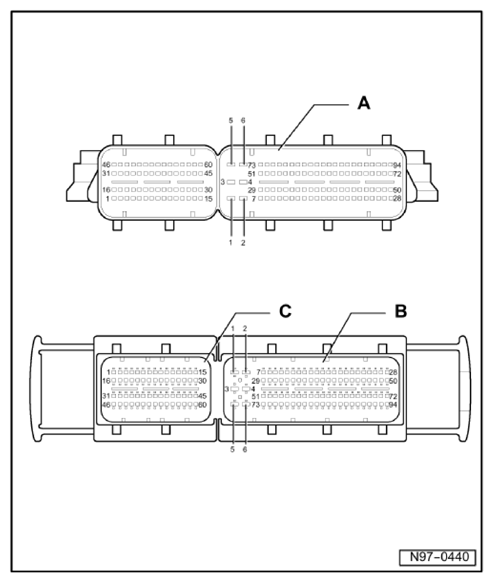

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. Engine Control Module (ECM) -J623-/Engine Control Module (ECM) 2 -J624-
2. 94-Pin Connector -T94-/94-Pin Connector -T94A-, Black
3. 60-Pin Connector -T60-/60-Pin Connector -T60A-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES  .
