Left High-Intensity Gas Discharge Lamp Control Module -J343-/Right High-Intensity Gas Discharge Lamp Control Module -J344-

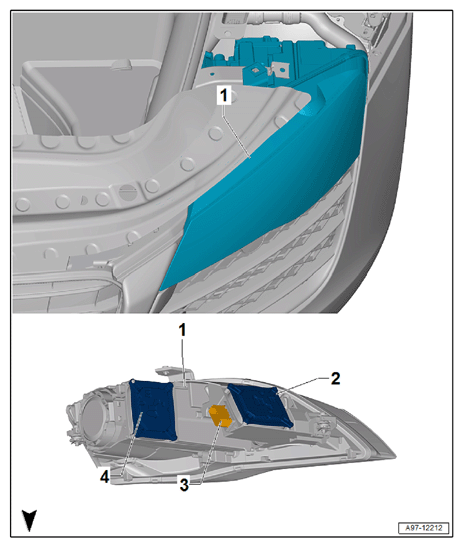

Component Location

On Headlamp.

1. Headlamp
   • In headlamp: Left Headlamp Power Output Stage -J667-/Right Headlamp Power Output Stage -J668-,
2. Left LED Parking Lamp/DRL Module -L176-/Right LED Parking Lamp/DRL Module -L177-
3. 14-Pin Connector -T14A-/14-Pin Connector -T14B-, Black
4. Left High-intensity Gas Discharge Lamp Control Module -J343-/Right High-intensity Gas Discharge Lamp Control Module -J344-

Courtesy of AUDI OF AMERICA, LLC
