Steering Column Electronic Systems Control Module -J527-

Component Location

On Steering Column On Steering Column Switch.

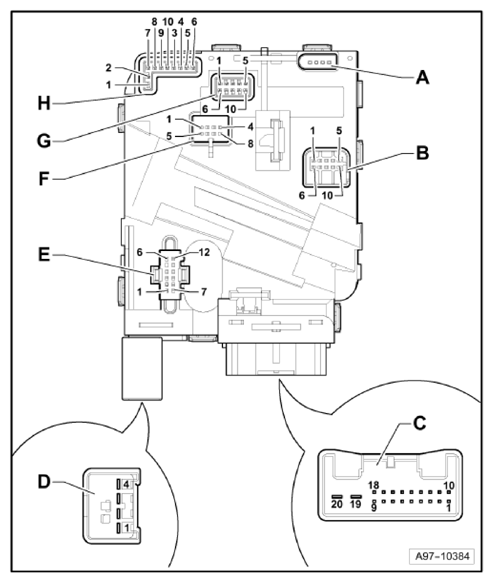

Pin Arrangements

1. Not Used
2. 10-Pin Connector -T10h-, Charging Turn Signal Switch -E2-/Cruise Control Switch -E45-/Headlamp Dimmer/Flasher Switch -E4-/Cruise Control -SET- Button -E227-
3. 20-Pin Connector -T20C-, Black
4. 4-Pin Connector -T4C-, Yellow
5. 12-Pin Connector -T12h-, Charging Ignition/Starter Switch -D-/Ignition Switch Key Lock Solenoid -N376-
6. 8-Pin Connector -T8c-, Charging Windshield Wiper Intermittent Switch -E22-/Windshield Washer Pump Switch (automatic wash/wipe and headlamp washer system) -E44-/Windshield Wiper Intermittent Regulator -E38-/Multi-function Indicator Call-up Button -E86-
7. 10-Pin Connector -T10g-, Charging Steering Angle Sensor -G85-
8. 10-Pin Connector -T10i-, Charging Airbag Spiral Spring/Return Spring With Slip Ring -F138-
