Wiper Motor Control Module -J400-/Front Passenger Windshield Wiper Motor Control Module -J584-

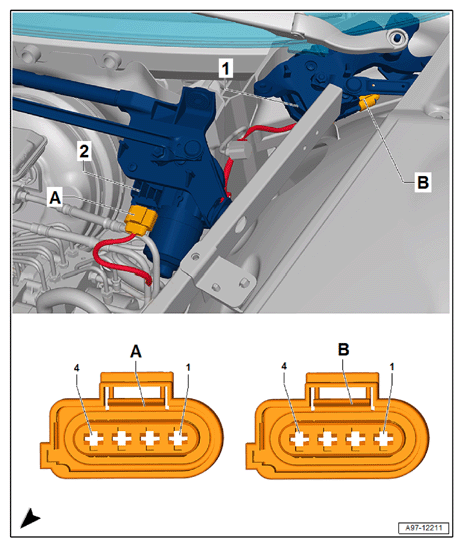

Component Location

In Plenum Chamber.

1. Wiper Motor Control Module -J400-
   • with Driver's Windshield Wiper Motor -V216-
2. Front Passenger Windshield Wiper Motor Control Module -J584-
   • with Front Passenger Windshield Wiper Motor -V217-

1. 4-Pin Connector -T4-
2. 4-Pin Connector -T4-

Courtesy of AUDI OF AMERICA, LLC
