Body Control Module (BCM): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
-
NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

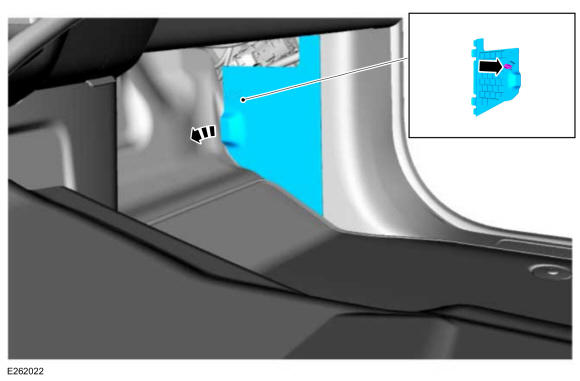

- Remove the BCM access cover.
-

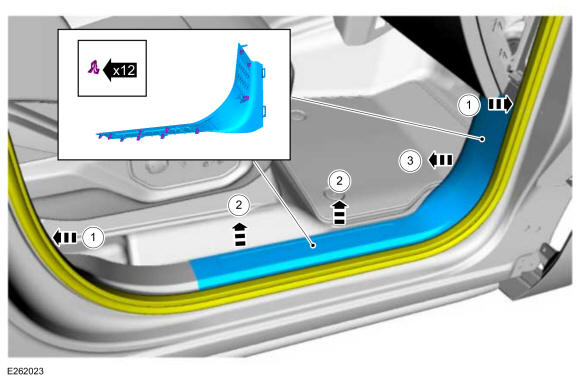

- Position aside the RH side front lower weatherstrip.
- Release the rearward clips on RH side front scuff plate.
- Release the forward clips and remove the RH side front scuff plate.

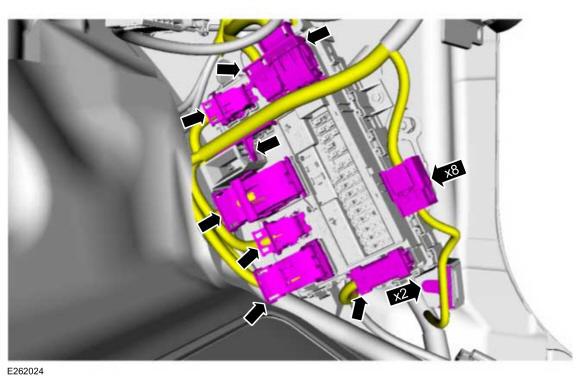

- Disconnect the electrical connectors and release the wire harness retainers.

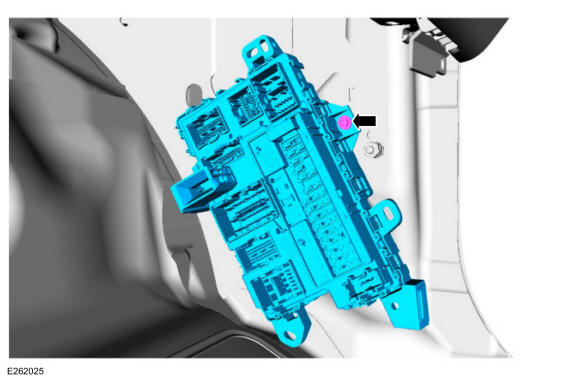

- Remove the screw and the BCM.
