Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the RTM following the on-screen instructions.
Lower the headliner. Refer to: Headliner - Lowering .

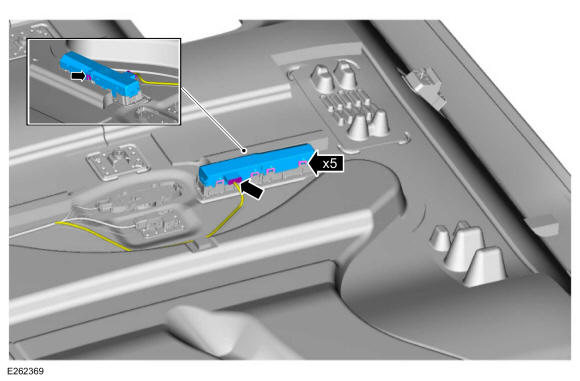

Disconnect the electrical connector, release the tabs and remove the RTM.

Courtesy of FORD MOTOR COMPANY
