External Audio Source Connection -R199-, REMOVING AND INSTALLING, CONNECTION IN GLOVE COMPARTMENT

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Removing:

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Open the glove compartment.

-- Disconnect the wire connection -arrow- from the harness connector.

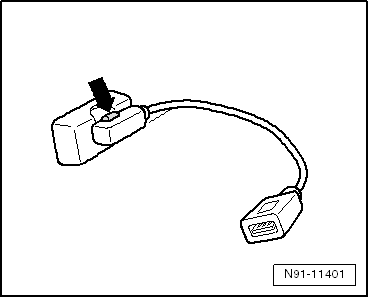

Fig 1: Harness Connector Wire Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim from the connection housing in the direction of -arrow-.

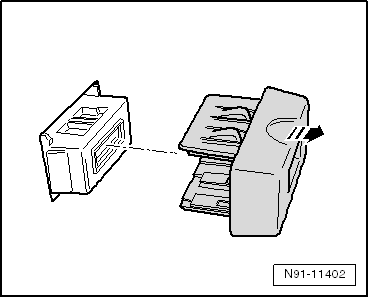

Fig 2: Identifying Trim From Connection Housing, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Unclip the External Audio Source Connection -R199- from the rear out of the glove compartment.

Installing:

Install in reverse order of removal.
