External Multimedia Device Interface, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- If the control module is replaced, select the "Replacement" function for the appropriate control module in "Guided Fault Finding" .

Connect the Vehicle Diagnostic Tester to do this.

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

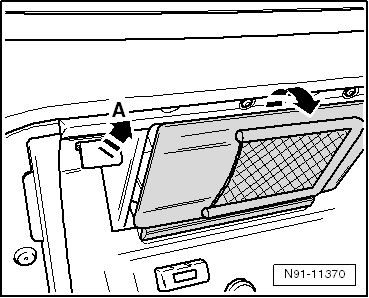

-- Open the glove compartment and pull the lever in the direction of -arrow A-. This lowers the installation frame with the external multimedia device interface in the direction of -arrow-.

Fig 1: Open The Glove Compartment And Pull The Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

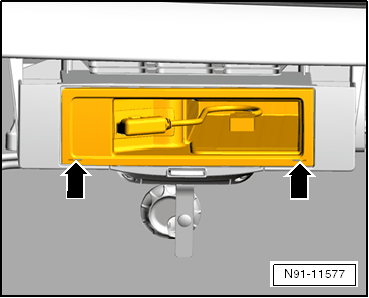

-- Insert the Radio Removal Tool: T10057 into the openings -arrows- until it locks into place.

Fig 2: Insert The T10057 Into The Openings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

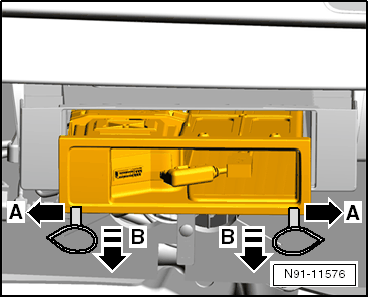

-- Push the tool in direction -A- and remove the control module in the direction of -arrow B-.

Fig 3: Push The Tool In Direction -A- And Remove The Control Module In Direction -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

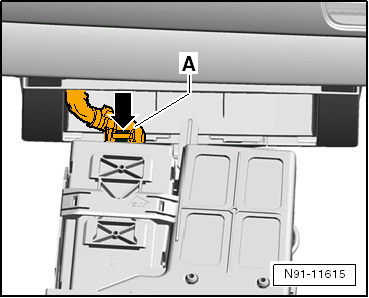

-- Remove the connector -A- from the control module -arrow-.

Fig 4: Identifying Connector -A- To Control Module, Removal
